smats::ExpressionDiv< T > Class Template Reference

#include <expression_cell.h>

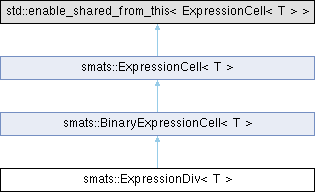

Inheritance diagram for smats::ExpressionDiv< T >:

Public Member Functions
	NEW_OPERATOR_PARAMS (ExpressionDiv, PARAMS(const Expression< T > &e1, const Expression< T > &e2), PARAMS(e1, e2))
Expression< T >	expand () const override
Expression< T >	evaluate_partial (const Environment< T > &env) const override
Expression< T >	substitute (const Substitution< T > &s) const override
Expression< T >	differentiate (const Variable &x) const override
std::ostream &	display (std::ostream &os) const override
Public Member Functions inherited from smats::BinaryExpressionCell< T >
void	hash (DelegatingHasher &hasher) const override
bool	equal_to (const ExpressionCell< T > &o) const override
bool	less (const ExpressionCell< T > &o) const override
T	evaluate (const Environment< T > &env) const override
const Expression< T > &	lhs () const
const Expression< T > &	rhs () const
Public Member Functions inherited from smats::ExpressionCell< T >
long	use_count () const
ExpressionKind	kind () const
const Variables &	variables () const
bool	is_polynomial () const
bool	is_expanded () const
void	set_expanded ()
template<template< class > class E>
const E< T > &	to () const
template<template< class > class E>
E< T > &	to ()
Expression< T >	to_expression () const
void	invalidate_cache ()

Static Public Member Functions
static void	check_domain (const T &v1, const T &v2)

Static Public Attributes
static const ExpressionKind	expression_kind = ExpressionKind::Div

Private Member Functions
T	do_evaluate (const T &v1, const T &v2) const override

Additional Inherited Members
Protected Member Functions inherited from smats::BinaryExpressionCell< T >
	BinaryExpressionCell (ExpressionKind kind, Expression< T > e1, Expression< T > e2, bool is_expanded)
void	compute_variables (std::optional< Variables > &variables) const override
void	compute_is_polynomial (std::optional< bool > &is_polynomial) const override
Protected Member Functions inherited from smats::ExpressionCell< T >
	ExpressionCell (ExpressionKind kind, bool is_expanded)
	ExpressionCell (ExpressionKind kind, bool is_polynomial, bool is_expanded)

Detailed Description

template<class T>
class smats::ExpressionDiv< T >

Symbolic expression representing the power function.

The expression holds two other expressions internally. Let \( x \) be the first expression and \( y \) be the second expression. The ExpressionPow cell represents the following expression:

\[ x^y \]

Template Parameters

T	type of the expression evaluation

Member Function Documentation

differentiate()

template<class T >

Expression< T > smats::ExpressionDiv< T >::differentiate ( const Variable & x ) const

overridevirtual

Differentiates this symbolic expression with respect to the variable var.

Parameters

x

variable

Exceptions

std::runtime_exception

if it is not differentiable.

Implements smats::ExpressionCell< T >.

display()

template<class T >

std::ostream & smats::ExpressionDiv< T >::display ( std::ostream & os ) const

overridevirtual

Displays the expression in a human-readable format.

Parameters

os	output stream

Returns

updated output stream

Implements smats::ExpressionCell< T >.

do_evaluate()

template<class T >

T smats::ExpressionDiv< T >::do_evaluate ( const T & v1, const T & v2 ) const

overrideprivatevirtual

Evaluate the binary expression, given the two values v1 and v2 of the arguments.

Parameters

v1	first value
v2	second value

Returns

evaluation result

Implements smats::BinaryExpressionCell< T >.

evaluate_partial()

template<class T >

Expression< T > smats::ExpressionDiv< T >::evaluate_partial ( const Environment< T > & env ) const

overridevirtual

Returns an Expression obtained by replacing all occurrences of the variables in env in the current expression cell with the corresponding values in env.

Parameters

env	environment

Exceptions

std::runtime_exception

if NaN is detected during substitution.

Implements smats::ExpressionCell< T >.

expand()

template<class T >

Expression< T > smats::ExpressionDiv< T >::expand ( ) const

overridevirtual

Expands out products and positive integer powers in expression.

Exceptions

std::runtime_exception

if NaN is detected during expansion.

Implements smats::ExpressionCell< T >.

substitute()

template<class T >

Expression< T > smats::ExpressionDiv< T >::substitute ( const Substitution< T > & s ) const

overridevirtual

Returns an Expression obtained by replacing all occurrences of the variables in s in the current expression cell with the corresponding expressions in s.

Parameters

s	substitution

Exceptions

std::runtime_exception

if NaN is detected during substitution.

Implements smats::ExpressionCell< T >.

---

The documentation for this class was generated from the following files:

• smats/symbolic/expression.h
• smats/symbolic/expression_cell.h
• smats/symbolic/expression_cell.cpp
