#include <expression_cell.h>

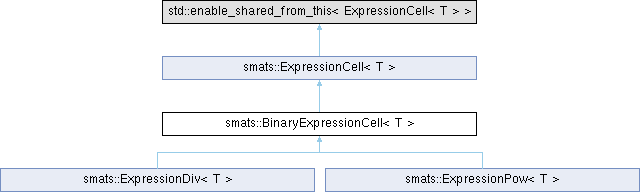

Inheritance diagram for smats::BinaryExpressionCell< T >:

Public Member Functions
void	hash (DelegatingHasher &hasher) const override

bool	equal_to (const ExpressionCell< T > &o) const override

bool	less (const ExpressionCell< T > &o) const override

T	evaluate (const Environment< T > &env) const override

const Expression< T > &	lhs () const

const Expression< T > &	rhs () const

Public Member Functions inherited from smats::ExpressionCell< T >
long	use_count () const

ExpressionKind	kind () const

const Variables &	variables () const

bool	is_polynomial () const

bool	is_expanded () const

void	set_expanded ()

template<template< class > class E>
const E< T > &	to () const

template<template< class > class E>
E< T > &	to ()

Expression< T >	to_expression () const

virtual Expression< T >	expand () const =0

virtual Expression< T >	evaluate_partial (const Environment< T > &env) const =0

virtual Expression< T >	substitute (const Substitution< T > &s) const =0

virtual Expression< T >	differentiate (const Variable &x) const =0

virtual std::ostream &	display (std::ostream &os) const =0

void	invalidate_cache ()

Protected Member Functions
	BinaryExpressionCell (ExpressionKind kind, Expression< T > e1, Expression< T > e2, bool is_expanded)

virtual T	do_evaluate (const T &v1, const T &v2) const =0

void	compute_variables (std::optional< Variables > &variables) const override

void	compute_is_polynomial (std::optional< bool > &is_polynomial) const override

Protected Member Functions inherited from smats::ExpressionCell< T >
	ExpressionCell (ExpressionKind kind, bool is_expanded)

	ExpressionCell (ExpressionKind kind, bool is_polynomial, bool is_expanded)

Private Attributes
const Expression< T >	e1_
	The first argument of the binary expression.

const Expression< T >	e2_
	The second argument of the binary expression.

Detailed Description

template<class T>
class smats::BinaryExpressionCell< T >

Symbolic expression used as a base for binary expressions.

The expression holds two other expressions internally. Some example include

\[ \min(x, y) \\ \max(x, y) \\ x^y \\ x \ y \\ \]

Template Parameters

T	type of the expression evaluation

Constructor & Destructor Documentation

◆ BinaryExpressionCell()

template<class T >

smats::BinaryExpressionCell< T >::BinaryExpressionCell	(	ExpressionKind	kind,
		Expression< T >	e1,
		Expression< T >	e2,
		bool	is_expanded )

protected

Constructs BinaryExpressionCell of kind with e1, e2 is_polynomial, and is_expanded.

Parameters

kind	kind of the expression
e1	first expression
e2	second expression
is_expanded	whether the expression is already expanded

BinaryExpressionCell

Member Function Documentation

◆ compute_is_polynomial()

template<class T >

void smats::BinaryExpressionCell< T >::compute_is_polynomial ( std::optional< bool > & is_polynomial ) const

overrideprotectedvirtual

Implements smats::ExpressionCell< T >.

◆ compute_variables()

template<class T >

void smats::BinaryExpressionCell< T >::compute_variables ( std::optional< Variables > & variables ) const

overrideprotectedvirtual

Implements smats::ExpressionCell< T >.

◆ do_evaluate()

template<class T >

virtual T smats::BinaryExpressionCell< T >::do_evaluate	(	const T &	v1,
		const T &	v2 ) const

nodiscardprotectedpure virtual

Evaluate the binary expression, given the two values v1 and v2 of the arguments.

Parameters

v1	first value
v2	second value

Returns: evaluation result

Implemented in smats::ExpressionDiv< T >, and smats::ExpressionPow< T >.

◆ equal_to()

template<class T >

bool smats::BinaryExpressionCell< T >::equal_to ( const ExpressionCell< T > & o ) const

nodiscardoverridevirtual

Compare two expression cells to determine if they are equal.

Parameters

o	other object to compare against

Returns: true the two object are equal; false if the two objects are different

Implements smats::ExpressionCell< T >.

◆ evaluate()

template<class T >

T smats::BinaryExpressionCell< T >::evaluate ( const Environment< T > & env ) const

nodiscardoverridevirtual

Evaluates under a given environment (by default, an empty environment).

Parameters

env	environment

Exceptions

std::runtime_exception if NaN is detected during evaluation.

Implements smats::ExpressionCell< T >.

◆ hash()

template<class T >

void smats::BinaryExpressionCell< T >::hash ( DelegatingHasher & ) const

overridevirtual

Sends all hash-relevant bytes for this ExpressionCell type into the given hasher, per the hash_append concept, except for kind(), because Expression already sends that.

Implements smats::ExpressionCell< T >.

◆ less()

template<class T >

bool smats::BinaryExpressionCell< T >::less ( const ExpressionCell< T > & o ) const

nodiscardoverridevirtual

Compare two expression cells to determine the order between them.

Parameters

o	other object to compare against

Returns: true if this object is less than the other object; false if this object is not less than the other object

Implements smats::ExpressionCell< T >.

◆ lhs()

template<class T >

const Expression< T > & smats::BinaryExpressionCell< T >::lhs ( ) const

inlinenodiscard

Get read-only access to the first argument of the binary expression.

Returns: first argument of the binary expression

◆ rhs()

template<class T >

const Expression< T > & smats::BinaryExpressionCell< T >::rhs ( ) const

inlinenodiscard

Get read-only access to the second argument of the binary expression.

Returns: second argument of the binary expression

The documentation for this class was generated from the following files:

smats/symbolic/expression.h
smats/symbolic/expression_cell.h
smats/symbolic/expression_cell.cpp
