smats::UnaryExpressionCell< T > Class Template Reference

#include <expression_cell.h>

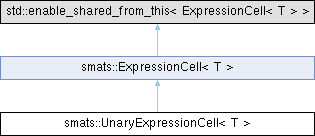

Inheritance diagram for smats::UnaryExpressionCell< T >:

Public Member Functions
const Expression< T > &	get_argument () const
Public Member Functions inherited from smats::ExpressionCell< T >
long	use_count () const
ExpressionKind	kind () const
virtual void	hash (DelegatingHasher &) const =0
const Variables &	variables () const
bool	is_polynomial () const
bool	is_expanded () const
virtual bool	equal_to (const ExpressionCell< T > &o) const =0
virtual bool	less (const ExpressionCell< T > &o) const =0
void	set_expanded ()
template<template< class > class E>
const E< T > &	to () const
template<template< class > class E>
E< T > &	to ()
Expression< T >	to_expression () const
virtual T	evaluate (const Environment< T > &env) const =0
virtual Expression< T >	expand () const =0
virtual Expression< T >	evaluate_partial (const Environment< T > &env) const =0
virtual Expression< T >	substitute (const Substitution< T > &s) const =0
virtual Expression< T >	differentiate (const Variable &x) const =0
virtual std::ostream &	display (std::ostream &os) const =0
void	invalidate_cache ()

Protected Member Functions
	UnaryExpressionCell (ExpressionKind k, Expression< T > e, bool is_expanded)
	UnaryExpressionCell (ExpressionKind k, Expression< T > e, bool is_polynomial, bool is_expanded)
virtual T	do_evaluate (T v) const =0
Protected Member Functions inherited from smats::ExpressionCell< T >
	ExpressionCell (ExpressionKind kind, bool is_expanded)
	ExpressionCell (ExpressionKind kind, bool is_polynomial, bool is_expanded)
virtual void	compute_variables (std::optional< Variables > &variables) const =0
virtual void	compute_is_polynomial (std::optional< bool > &is_polynomial) const =0

Private Attributes
const Expression< T >	e_
	The argument of the unary expression.

Detailed Description

template<class T>
class smats::UnaryExpressionCell< T >

Symbolic expression used as a base for unary expressions.

The expression holds another expression internally. Some example include

\[ \log(x) \\ \exp(x) \\ \sin(x) \\ \cos(x) \\ \tan(x) \\ \]

Template Parameters

T	type of the expression evaluation

Constructor & Destructor Documentation

UnaryExpressionCell() [1/2]

template<class T >

smats::UnaryExpressionCell< T >::UnaryExpressionCell ( ExpressionKind kind, Expression< T > e, bool is_expanded )

protected

Construct a new UnaryExpressionCell of kind with e, is_polynomial, and is_expanded.

Parameters

kind	kind of the expression
e	expression
is_expanded	whether the expression is already expanded

UnaryExpressionCell

UnaryExpressionCell() [2/2]

template<class T >

smats::UnaryExpressionCell< T >::UnaryExpressionCell ( ExpressionKind k, Expression< T > e, bool is_polynomial, bool is_expanded )

protected

Construct a new UnaryExpressionCell of kind with e, is_polynomial, and is_expanded.

Parameters

kind	kind of the expression
e	expression
is_polynomial	whether the expression is a polynomial
is_expanded	whether the expression is already expanded

Member Function Documentation

do_evaluate()

template<class T >

virtual T smats::UnaryExpressionCell< T >::do_evaluate ( T v ) const

nodiscardprotectedpure virtual

Evaluate the unary expression with the given value v of the argument.

Parameters

v

value

Returns

evaluation result

get_argument()

template<class T >

const Expression< T > & smats::UnaryExpressionCell< T >::get_argument ( ) const

inlinenodiscard

Get read-only access to the argument of the unary expression.

Returns

argument of the unary expression

---

The documentation for this class was generated from the following files:

• smats/symbolic/expression.h
• smats/symbolic/expression_cell.h
• smats/symbolic/expression_cell.cpp
